EZ9F43340

EZ9F43340

SKU: TR
$13.92Price

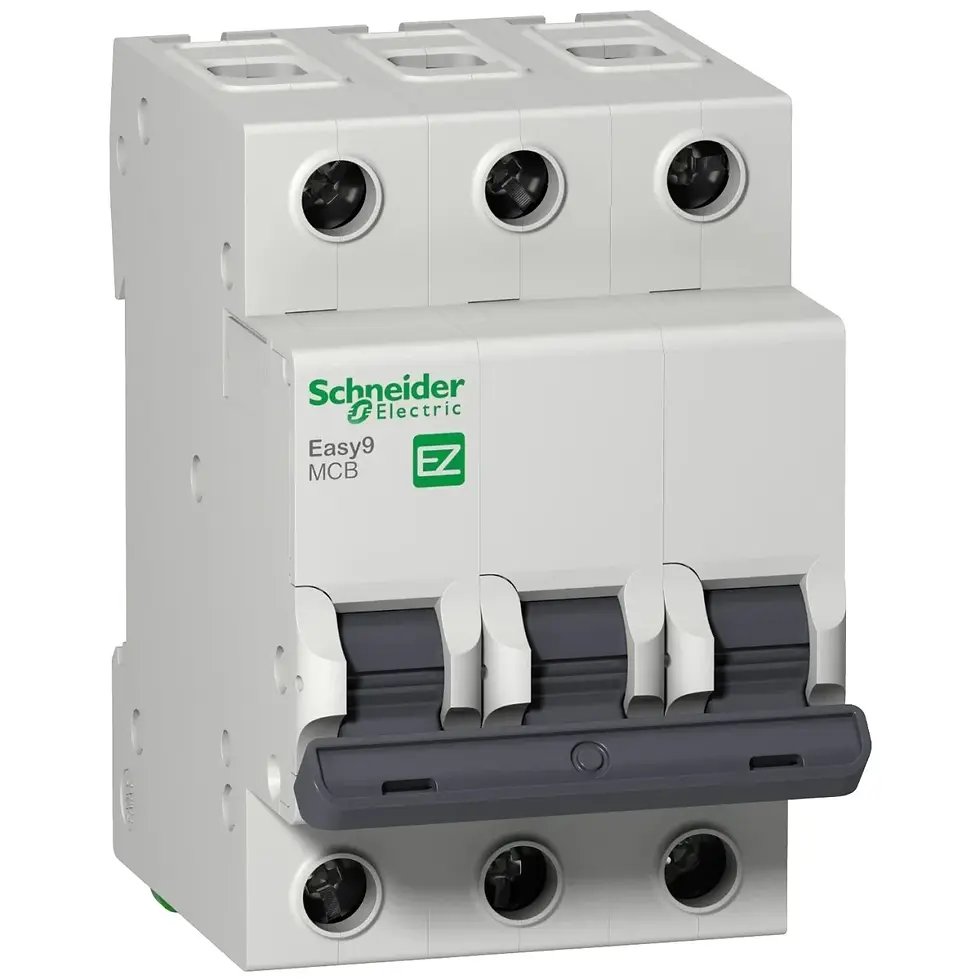

EZ9F43340 - schneider
Easy9 MCB 3P 40A C 3000A 400V Automatic Fuse
stock : 141
description
Rated short-circuit breaking capacity Compliant with IEC 60898-1 Standard Up to 5000A at 220VAC Compliant with IEC 60898-1 Standard This product has short circuit protection and cable protection against overloads There is a fault trip indicator on the front panel according to the position of the handle (OI hollow) This product is intended for residential and small commercial buildings It has electrical withstand up to 4000 cycles and mechanical withstand up to 10000 cycles Ue operating voltage is 400VAC Ui rated insulation voltage is 500VAC Uimp rated impulse withstand voltage 4kV Operating frequency 50Hz or 60Hz DIN rail for modular installation Product color is light gray (RAL7035) Dimensions (W) 54mm x (H) 81mm x (D) 66.5mm According to IEC 60529 Standard, degree of protection in the box IP20 and IP40 Operating temperature -25°C to 60°C Storage temperature -40°C to 85°C.
Quantity

  • Specifications Main

    Main

    sherry Easy9
    device application Distribution
    Product or component type Miniature circuit breaker
    Product group Easy9 MCB
    Poles 3P
    number of protected poles 3
    [In] nominal current 40 A
    Network type HUNGRY
    opening unit technology Thermal Magnetic
    slope code C
    cutting capacity 3000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
    5000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
    suitability for insulation Yes conforming to IEC 60898-1

    Complement

    Network frequency 50/60Hz
    [Ue] nominal operating voltage 400V AC 50/60Hz
    magnetic opening limit 5...10 x In
    [Ics] nominal service interrupting capacity 3 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
    [Ui] nominal insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1
    [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1
    ignition position indicator Yes
    Control type Transition
    On-device signaling Without
    Mounting Type Pluggable
    mounting support DIN rail
    9mm screw pitch 6
    Height 81mm
    Width 54mm
    Depth 66.5mm
    colour Grey (RAL 7035)
    Mechanical durability 10000 cycles
    electrical resistance 4000 cycles
    connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid
    Tunnel type terminal (top or bottom) 1…16 mm² flexible
    tightening torque 3.5 Nm top or bottom

  • Environment and Packing Units

    Environment

    Standards IEC 60898-1
    Product certificates CE
    IP protection degree IP20 conforming to IEC 60529
    degree of contamination 2
    tropical climate 2
    relative humidity 95% at -25…60 °C
    Nominal operating ambient temperature -25…60 °C
    Storage environmental conditions -40…85 °C

    Packaging units

    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 7.5 cm
    Package 1 Width 5.3 cm
    Package 1 Length 8.5 cm
    Package 1 Weight 318g
    Unit Type of Package 2 BB1
    Number of Units in Package 2 4
    Package 2 Height 8cm
    Package 2 Width 8.8 cm
    Package 2 Length 22.8 cm
    Package 2 Weight 1,265 kg
    Unit Type of Package 3 S03
    Number of Units in Package 3 48
    Package 3 Height 30cm
    Package 3 Width 30cm
    Package 3 Length 40cm
    Package 3 Weight 15,264 kg

  • properties

    • Combine short circuit and overload current protection
    • Suitability for residential insulation according to IEC 60898-1 standard
    • Easy installation with unified terminal design and wiring indicator
    • Complies with global RoHS/Reach regulations to protect your family and environment
